Variables

You can set variables to keep track of decisions made inside a dialogue, or to pass state in and out of dialogues from your wider code (C++ or Blueprints).

There are 2 scopes for variables, dialogue scope and global scope.

Dialogue Variables

Every runtime instance of a script (also called a Dialogue) has a pool of variable memory, which is stored simply as a set of name/value pairs.

When you set a variable value on a dialogue instance, either in script or in code, it is added to this variable memory, which persists all the time the dialogue exists, and can be saved.

  • All variables are shared across the entire script; indenting does not matter
  • Variable state does not outlive the dialogue instance, unless you save them
  • Variable names are case insensitive.
  • Variable names can contain:
    • Letters (a-z, A-Z)
    • Numbers (0-9)
    • Underscores (_)
    • Periods (.)
  • Variable names must not use the prefix global., which is reserved for global variables

Variables are flexibly typed, which means you can assign any of the supported types to them.

Global Variables

There also exists a pool of global variables which are shared across all dialogue instances. If you have some common variable state that you don't want to set up every time you start a dialogue instance, or if you want changes made to a variable inside a dialogue instance to be available to other dialogues later, then you might want to use global variables. The alternative is to pass variable state in/out of individual dialogue instances as you start / finish them.

In script, global variables are simply variables which have the prefix global.. In C++ and Blueprints, there is a separate API for setting global variables, see Setting Variables.

Supported Types

Type Unreal Type Notes
Integer int32 Whole numbers between -2,147,483,648 and 2,147,483,647.
Float float Single-precision floating point numbers. Literals must contain a decimal point.
Boolean bool Literals can be true or false
Text FText Literal values are enclosed in double-quotes ("Text") and are localised
Name FName Literal values are enclosed in backticks (`Name`), no localisation
Gender ETextGender Literals can be masculine, feminine or neuter

Setting Variables

Setting Variables In Script

This is done via Set lines.

Setting Variables In Code

You set dialogue variables in code by calling one of the dialogue's SetVariable methods. You set global variables using the SUDSSubsystem's SetGlobalVariable methods.

Blueprints

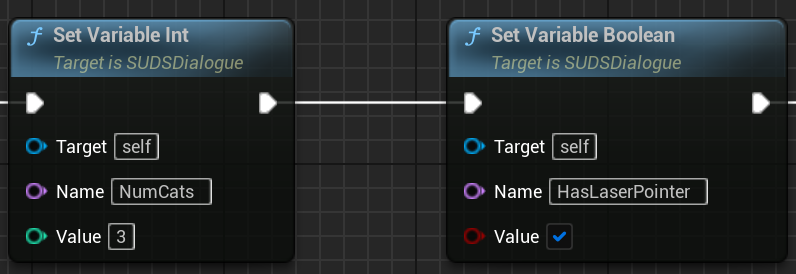

For dialogue variables, Blueprints have a specific variant of SetVariable for each of the supported types, for example:

Set Variable

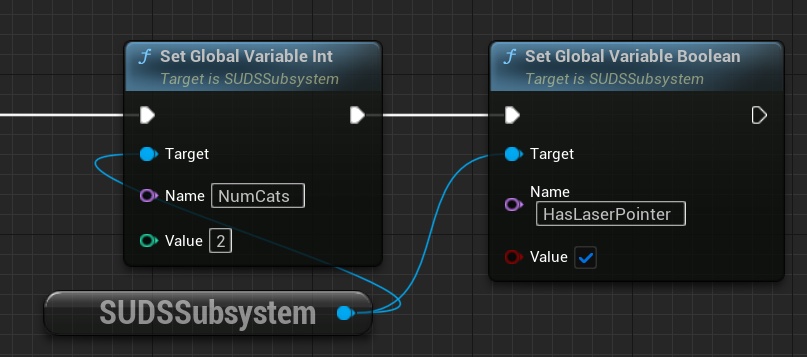

For global variables, use the SUDSSubsystem's SetGlobalVariable methods.

Set Global Variable

Note that you don't use the "global." prefix on the name when setting from Blueprints / C++

C++

From C++ you can call these type-specific methods too, or you can call a universal templated version which will determine the type automatically. For dialogue variables:

Dlg->SetVariable("NumCats", 3);
Dlg->SetVariable("HasLaserPointer", true);

For global variables:

auto SUDS = GetSUDSSubsystem(WorldContext);
SUDS->SetGlobalVariable("NumCats", 2);
SUDS->SetGlobalVariable("HasLaserPointer", true);

On-Demand Dialogue Variable Setting

While the simplest way to get state from surrounding code into the dialogue is to do a one-time set of calls to SetVariable at creation of the dialogue, or using global variables, sometimes you might want to let the dialogue have access to state on demand. Perhaps the state is volatile and changes during the dialogue.

To do this, you can hook into the OnVariableRequested event on the runtime dialogue instance, or implement OnDialogueVariableRequested on a Participant.

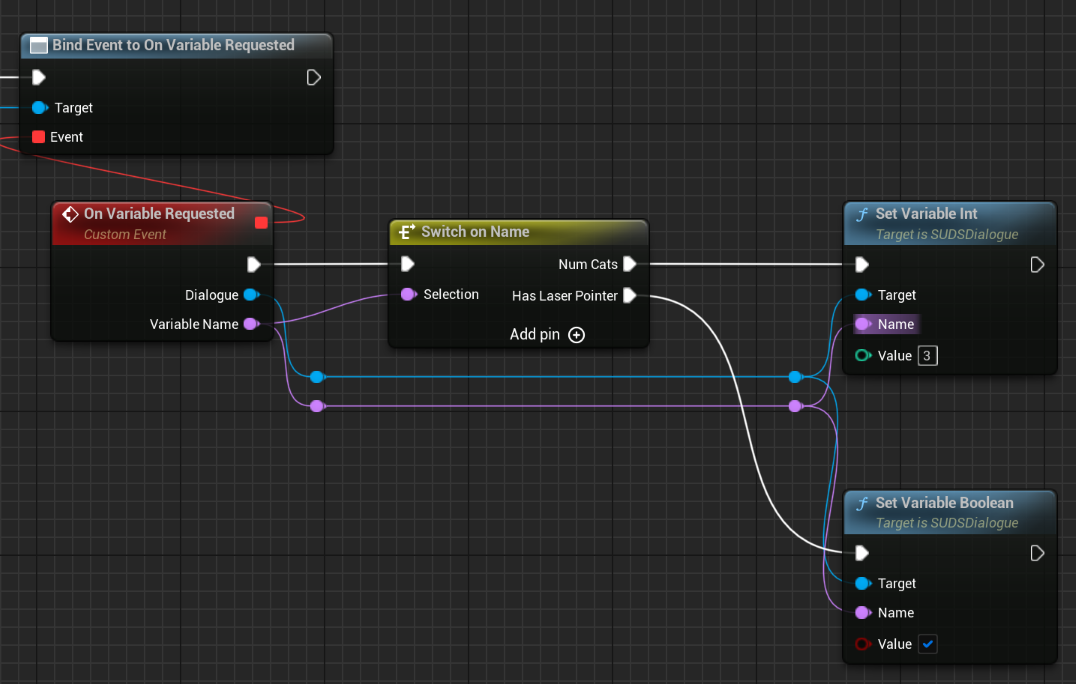

The event version might look something like this in Blueprints:

on Demand Vars

Or in C++ the Participant version might be:

void ANPC::OnDialogueVariableRequested_Implementation(USUDSDialogue* Dlg, FName VarName)
{
    static const FName NumCats("NumCats");
    static const FName HasLaserPointer("HasLaserPointer");
    if (VarName == NumCats)
    {
        Dlg->SetVariable(Numcats, 3);
    }
    else if (VarName == HasLaserPointer)
    {
        Dlg->SetVariable(HasLaserPointer, true);
    }
}

Getting Variable Values

Referencing in script

You can refer to the value of variables in many ways in the script.

In Speaker and Choice lines, you can substitute variables into the text using curly braces, for example:

NPC: Wow, look at that {Thing}!
NPC: There are {global.NumCats} cats!

Any variable prefixed with global. is a global variable, all other variables are dialogue variables.

See Text Markup for more details.

You can also use them in Expressions in both Set lines and Conditional lines.

Getting from Code

You can retrieve the value of any variable by calling one of the GetVariable methods. Like SetVariable they have variants for each of the supported types.

However if for some reason you do not know the type you can call the generic GetVariable and receive the flexible type version, which is of type FSUDSValue.

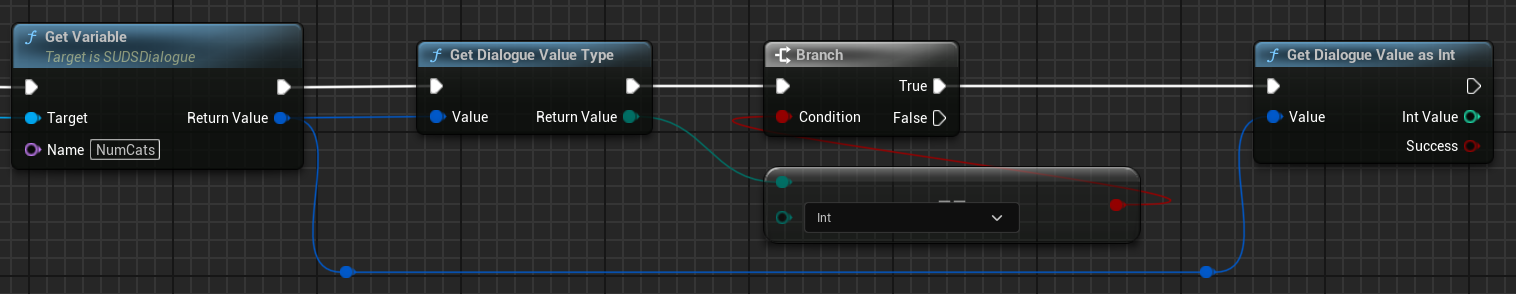

You can determine the type from that and retrieve the actual value, both in C++ and Blueprints, for example:

Get Var Type

You can also get global variables from the SUDSSubsystem in the same way as setting variables above.

Uninitialised Variables

In Expressions Or Conditionals

If you use the value of a variable which has not been set in expressions like {SomeValue} + 1, you get a default value depending on the context.

If you're doing a boolean test you get false, if numeric you get 0, and for text you get a blank string. This is so that expressions never fail to evaluate, so they don't break your script.

In Text

If you output an uninitialised variable in text, then you get just the original text, unsubstituted. For example if you had a speaker line that said NPC: So you want {Count}?, and Count is undefined, then that line will be printed verbatim, rather than substituting the default 0. This is because you basically never want to rely on defaults when outputting text to a player, so printing the unsubstituted variable name makes it easier to detect a bug like this.
