Voiced Dialogue

A lot of the functions of SUDS are suited to a text-based dialogue system, but you can use fully voiced lines as well if you want. Obviously you lose the ability to parameterise parts of voiced text, since it's pre-recorded, but everything else works the same way.

Only speaker lines can be voiced; choices are always text. If you need a character to read out the choice once it's selected, just add a speaker line for the choice path; this also means the spoken version can be longer than the abbreviated choice text.

Voice Assets: a quick tour

Unreal deals with voiced dialogue via the Dialogue Voice and Dialogue Wave assets; see the official documentation for full details but we'll quickly explain them here.

Dialogue Voice assets correspond to speakers. They're mostly just a placeholder, but also define the gender and plurality of the speaker for informational purposes.

Dialogue Wave assets correspond to individual lines of dialogue. Wave assets are linked to Sound Wave assets for the actual audio. They are also linked back to the voice of the speaker, and optionally the target - it's possible to define multiple speaker/target contexts and use different audio for each, but in the case of SUDS that's rarely required, since the context is usually singular.

So in SUDS, when using voice assets there will be one Dialogue Voice for each speaker in a script, and one Dialogue Wave for each line.

Generating Voice Assets

SUDS can generate voice assets for you. Obviously we can't generate the audio for you (!), but we can generate the voice and wave assets, and link them into your scripts, ready for you to flesh them out with actual voice audio later.

However, before you do that, you need to consider a couple of things:

Prepare your scripts

Because generating voice assets creates a lot of additional linked assets, you don't want to do it until your scripts are pretty stabilised. Every line will generate a Dialogue Wave asset, and while you can repeat the process and it will overwrite previously generated assets, you don't really want to be doing it until you're fairly sure your script is basically done.

The other thing to realise is that if you do need to alter your script afterwards, and particularly if you add or remove lines, it's vital that the identifiers for each speaker line continue to match up with Dialogue Waves that were previously generated. This is the same issue as localisation, and has the same solution: you really should use the "Write Back String Keys" function before generating voice assets, so that your script knows what the string key for every line is. Just like for localisation, you want to do this late in the writing process so that you don't have to clutter your script with string keys, but it's preferable to do it before generating voice assets. It's not quite as vital as doing it before localisation, but bear in mind you might have to delete and recreate your voice assets after a script update if you don't.

Configure settings

The other thing you need to do is check your project settings to define where you want the assets to be created.

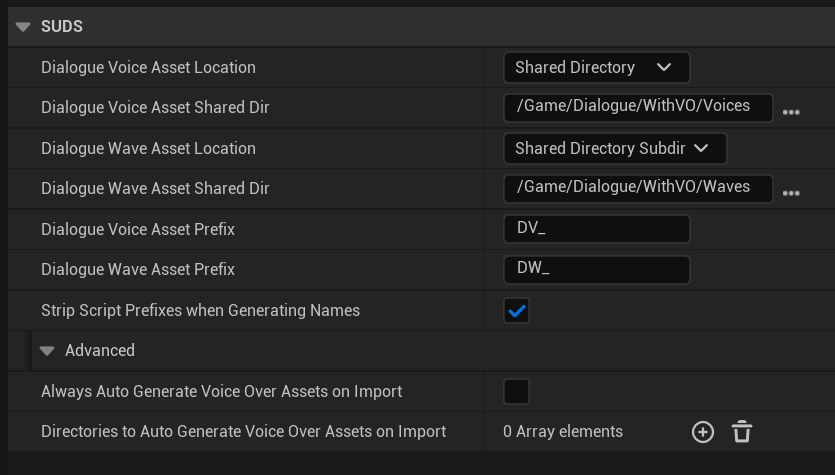

Go to Project Settings > SUDS Editor:

Voice Settings

  • Dialogue Voice Asset Location: Where to generate dialogue voice assets. Recommend leaving this set Shared Directory, that way whenever you use the same speaker ID across multiple scripts, they will all refer to the same dialogue voice asset
  • Dialogue Voice Asset Shared Dir: Pick the shared directory where voice assets are created
  • Dialogue Wave Asset Location: Where to store dialogue wave assets. There will be a lot more of these, so it's a good idea to use one of the "Subdir" options so that all waves for a single script are contained in a subdirectory. You can put them in a single shared directory, or alongside the script that generated them.
  • Dialogue Wave Asset Shared Dir: Set this if you've chosen to use a shared directory for waves
  • Dialogue Voice Asset Prefix: The prefix to give dialogue voices when generating them.
  • Dialogue Wave Asset Prefix: The prefix to give dialogue waves when generating them.
  • Strip Script Prefixes when Generating Names: When using the script name to generating subdirs or wave names, whether to strip characters before the first "_" so as not to repeat the script prefix in the name (recommended)

Advanced Settings Here you can find options to auto-generate voice assets on import, either for all scripts, or only ones in certain folders. I don't recommend you enable these, since most likely you'll be going through multiple round-trips with your scripts, and generating voice assets every time is likely a waste of time, and may even leave asset clutter you don't need should you do major edits.

Generating voice assets

There are 2 ways to do this; in bulk, or individually.

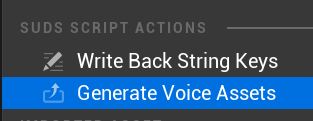

Bulk generation: right-click one or more SUDS scripts and click "Generate Voice Assets":

Generate  Voice Assets

Single script: When you have a SUDS script asset open in the editor, where you can run the script for testing, click the "Generate Voice Assets" button in the toolbar.

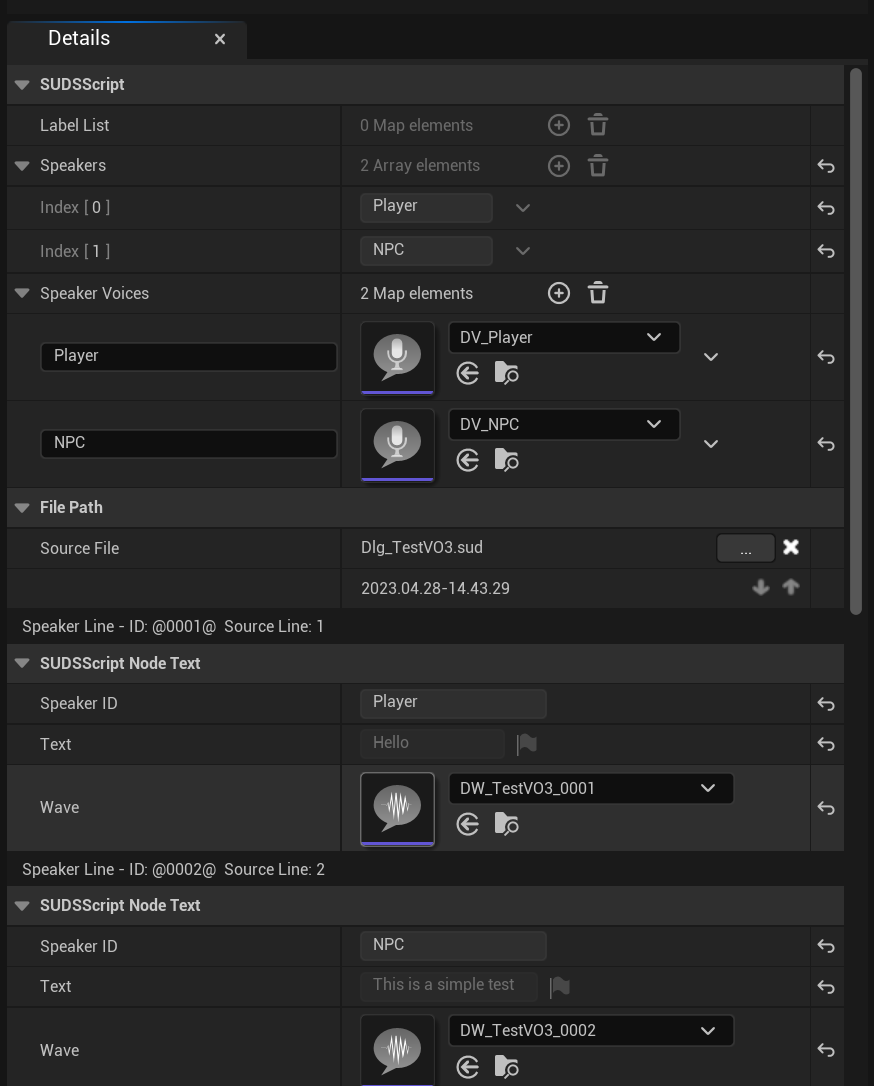

After generating voice assets, you'll have Dialogue Voice assets like "DV_SpeakerID" for each speaker, and lots of Dialogue Wave assets. Your script assets will also be updated to reference these assets, which you can see in the Details pane when opening a script asset in UE:

VoiceDetails

These asset links are editable, so if you decide to replace some of these assets with your own, or even remove a wave asset for a particular line, you can do so.

Completing the assets

SUDS can only generate template assets, you'll need to edit these assets to be able to play them.

Dialogue Voice

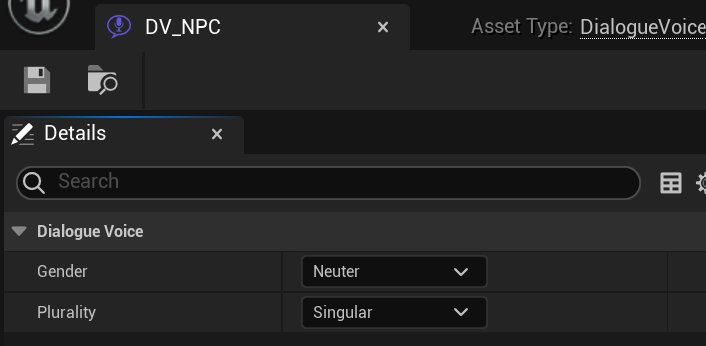

Dialogue Voice assets simply need to be edited to provide gender and plurality:

Dialogue Voice Asset

Dialogue Wave

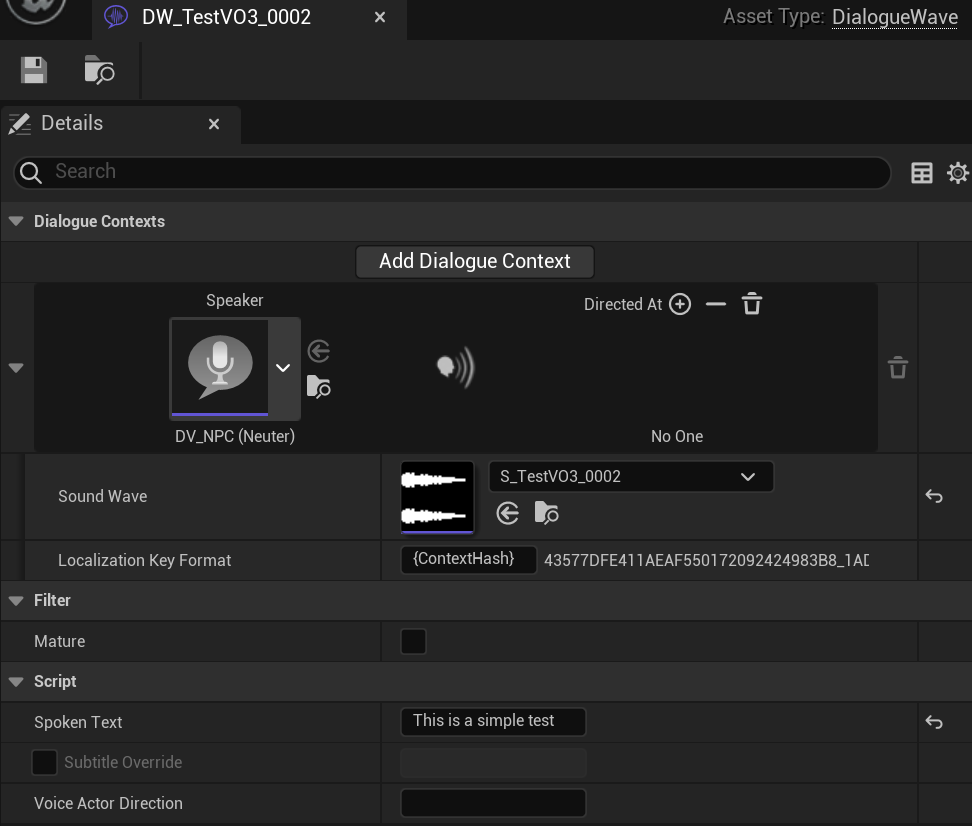

Dialogue Wave assets are where most of the work you need to do is.

Dialogue Wave Asset

SUDS generates a Dialogue Context for you when creating the Dialogue Wave; it only has the Speaker, and not the Directed At section completed, but you don't actually need the latter.

Expanding the context, you can see the space for the Sound Wave, which is where you need to plug in the Sound Wave asset containing your voiced dialogue.

Naming conventions: When generating the Dialogue Wave, the file name is generated from the prefix (DW_ by default), the name of the script (TestVO3), and the string key of the speaker line. This is why it's preferable to have written the string keys back to the script before generating these assets, then the link remains reproducible.

Spoken Text Field

SUDS automatically fills in the Spoken Text field, so it makes it easier to identify the line without having to look up the string key. By default, this is what Unreal uses if you enable its built-in subtitles feature.

However, because this is a plain FString, it doesn't link with the string table version of the line which SUDS normally uses; it's effectively a copy. If you're doing your own subtitles, you can choose between using subtitle text from Dialogue Wave, or using GetText() from the SUDS dialogue (which uses the string table). They'll always be the same for the primary language, but you should bear in mind that they are localised separately, so to avoid duplication you should pick one or the other and use that through your localisation process.

It's unfortunate that UE decided to make SpokenText FString rather than FText, and separating the localisation process. There's not much we can do to unify this, since if you choose to use their built-in subtitles it has to use this separate text version. I guess it also unifies the translation for the audio and spoken version into one place, which is helpful if the actor improvises changes to the line. Just be careful to pick your source of subtitles knowing the implications.

Playing Voice Lines

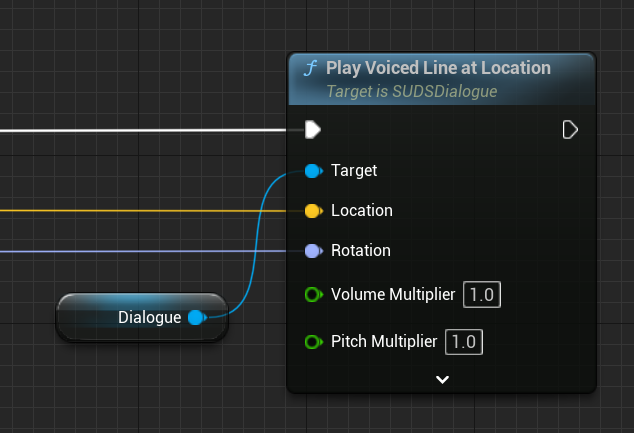

When deciding how to process the current dialogue line, you can check for voiced lines using "Is Current Line Voiced", and if so play the audio, like this:

Play Dialogue

Other options:

  • Play Voiced Line 2D plays the line without a 3D placement
  • Spawn Voiced Line at Location and Spawn Voiced Line 2D do the same as the Play versions, but return you a UAudioComponent in case you want to do something with it while it's playing, such as attach it to an object

Voice concurrency

By default only one voiced line will be played at a time, so if you advance dialogue before a line is finished playing and another one is played, it will interrupt the previous one. The settings for this are persistent across all dialogues.

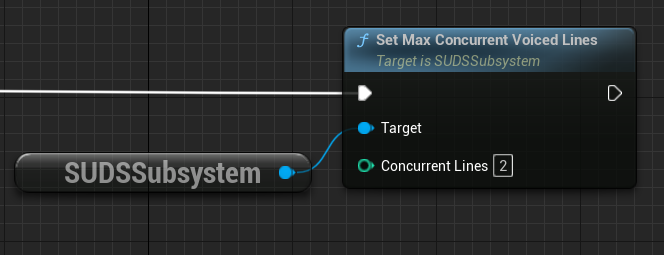

To allow more voiced lines to be played at once, use SUDSSubsystem:

ConcurrentVoices
